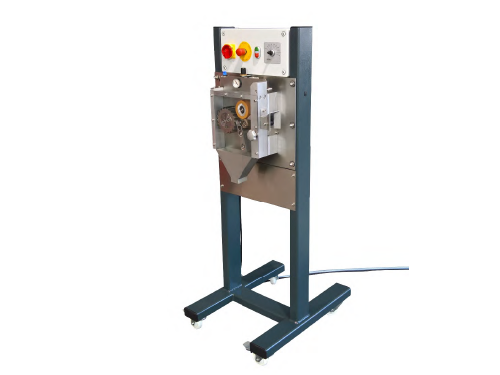

Pelletizer PT-G50E monodrive

Features

Cutting head

  • single side bearings
  • fast clean out



Intake section

  • strand intake wear protected
  • elastic feed roll pressured by pneumatic cylinder

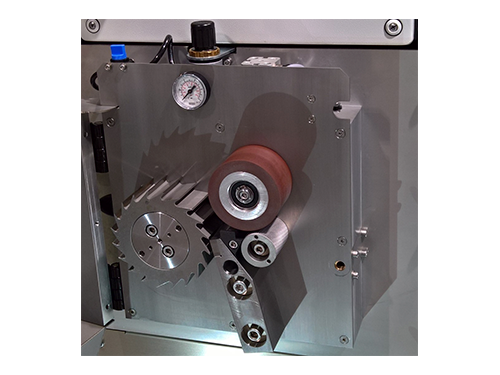

Cutting section

  • fast cutting rotor exchange
  • simple cutting gap adjustment



Drive

  • powerful FC-drive
  • fixed cutting length 3,0mm

Options

two operating sides

  • Left or Right



two cutting rotor materials

  • S01 (hardened tool steel)
  • H02 (tungsten carbide)



two drive power sizes

  • 0,75 kW
  • 1,1 kW



two intake speed ranges

  • 7,5 to30 m/min
  • 15 to60 m/min



Transfer signals/Remote control



Noise enclosure



Pelletizer PT-G50E duodrive

Features

Cutting head

  • single side bearings
  • fast clean out



Intake section

  • strand intake wear protected
  • elastic feed roll pressured by pneumatic cylinder



Cutting section

  • fast cutting rotor exchange
  • simple gap adjustment



Drive

  • two FC-drives
  • variable cutting length



Touchdisplay

Options

two operating sides

  • Left or Right



two cutting rotor materials

  • S01 (hardened tool steel)
  • H02 (tungsten carbide)



two drive power sizes

  • 1,5 kW
  • 2,2 kW



three intake speed ranges

  • 7,5 to 30 m/min
  • 15 to 60 m/min
  • 22,5 to 90 m/min



two variable cutting lengthes

  • 1,5 - 3,0 mm / 2,0 - 4,0 mm



Transfer signals/Remote control



Noise enclosure

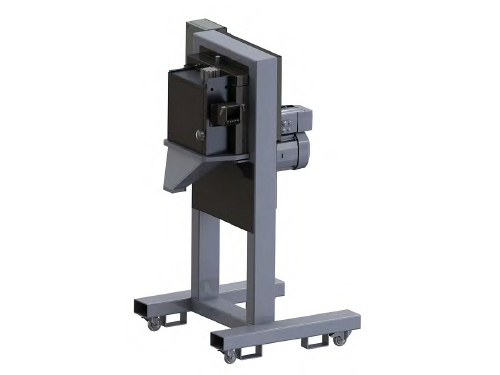

Pelletizer PT-G100E monodrive

Features

Cutting head

  • single side bearings
  • fast clean out



Intake section

  • strand intake wear protected
  • elastic feed roll pressured by pneumatic cylinder



Cutting section

  • fast cutting rotor exchange
  • simple cutting gap adjustment



Drive

  • powerful FC-drive
  • fixed cutting length 3,0mm





Options

two operating sides

  • Left or Right



two cutting rotor materials

  • S01 (hardened tool steel)
  • H02 (tungsten carbide)



three drive power sizes

  • 3,0 kW
  • 4,0 kW
  • 5,5 kW



two intake speed ranges

  • 15 to 60 m/min
  • 22,5 to 90 m/min



Transfer signals/Remote control



Noise enclosure



Pelletizer PT-G100E duodrive

Features

Cutting head

  • single side bearings
  • fast clean out



Intake section

  • strand intake wear protected
  • elastic feed roll pressured by pneumatic cylinder



Cutting section

  • fast cutting rotor exchange
  • simple gap adjustment



Drive

  • two FC-drives
  • variable cutting length



Touchdisplay

Options

two operating sides

  • Left or Right



two cutting rotor materials

  • S01 (hardened tool steel)
  • H02 (tungsten carbide)



two drive power sizes

  • 3,0 kW
  • 5,5 kW



two intake speed ranges

  • 15 to 60 m/min
  • 22,5 to 90 m/min



two variable cutting lengthes

  • 1,5 - 3,0mm
  • 2,0 - 4,0mm



Transfer signals/Remote control



Noise enclosure



Pelletizer PT-G120D PT-G220D PT-G320D

Features

Cutting head

  • dual side bearings
  • very rugged



Intake section

  • intake wear protected
  • retractable stripper blade



Cutting section

  • sturdy cutting rotor bearings
  • precise cutting gap adjustment



Drive

  • powerful FC-drive



Noise insulation hood



Touchdisplay

Options

two cutting rotor materials

  • S01 (hardened tool steel)
  • H02 (tungsten carbide)



two drive power sizes each

  • 5,5 kW
  • 7,5 kW
  • 11,0 kW
  • 15,0 kW



two intake speed ranges

  • 22,5 to 90 m/min
  • 30 to 120 m/min



driven upper feed roll

  • allows steel roller



variable cutting length

  • 2,0 - 4,0mm
  • second FC-drive (duodrive)



Transfer signals/Remote control
